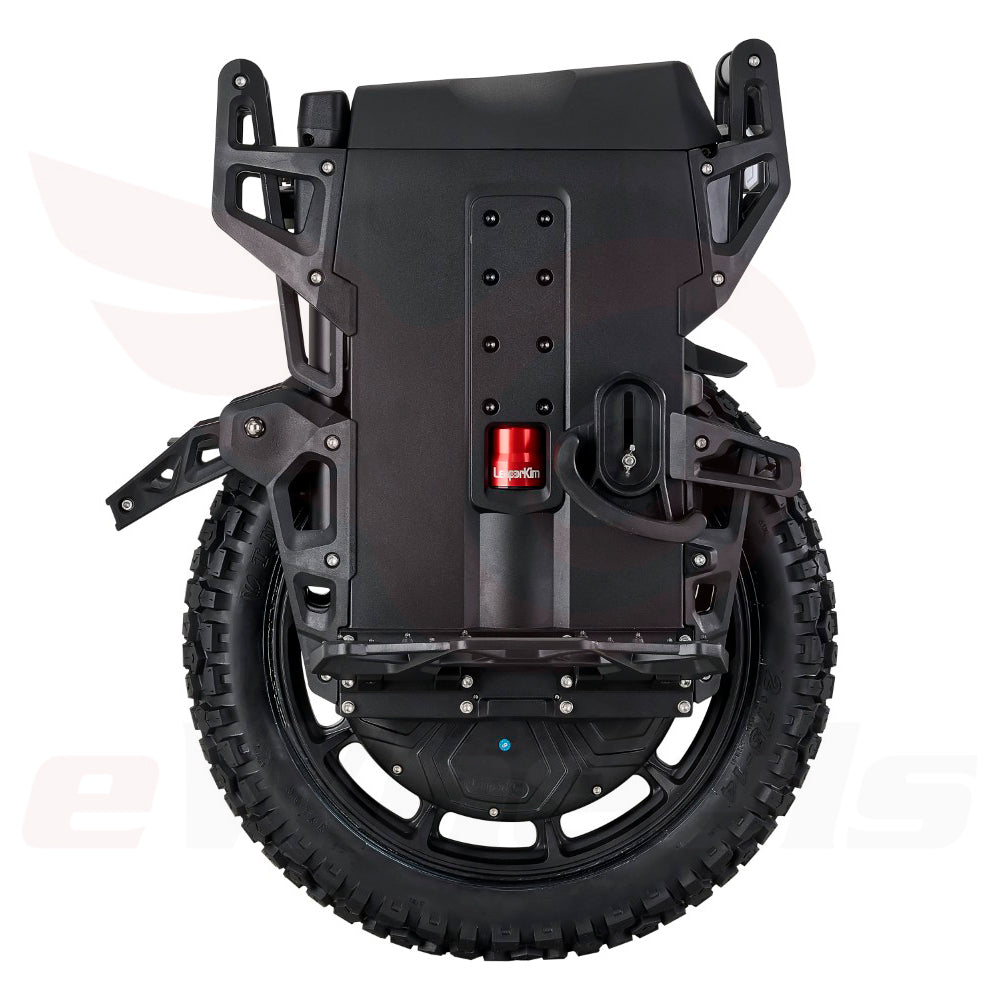

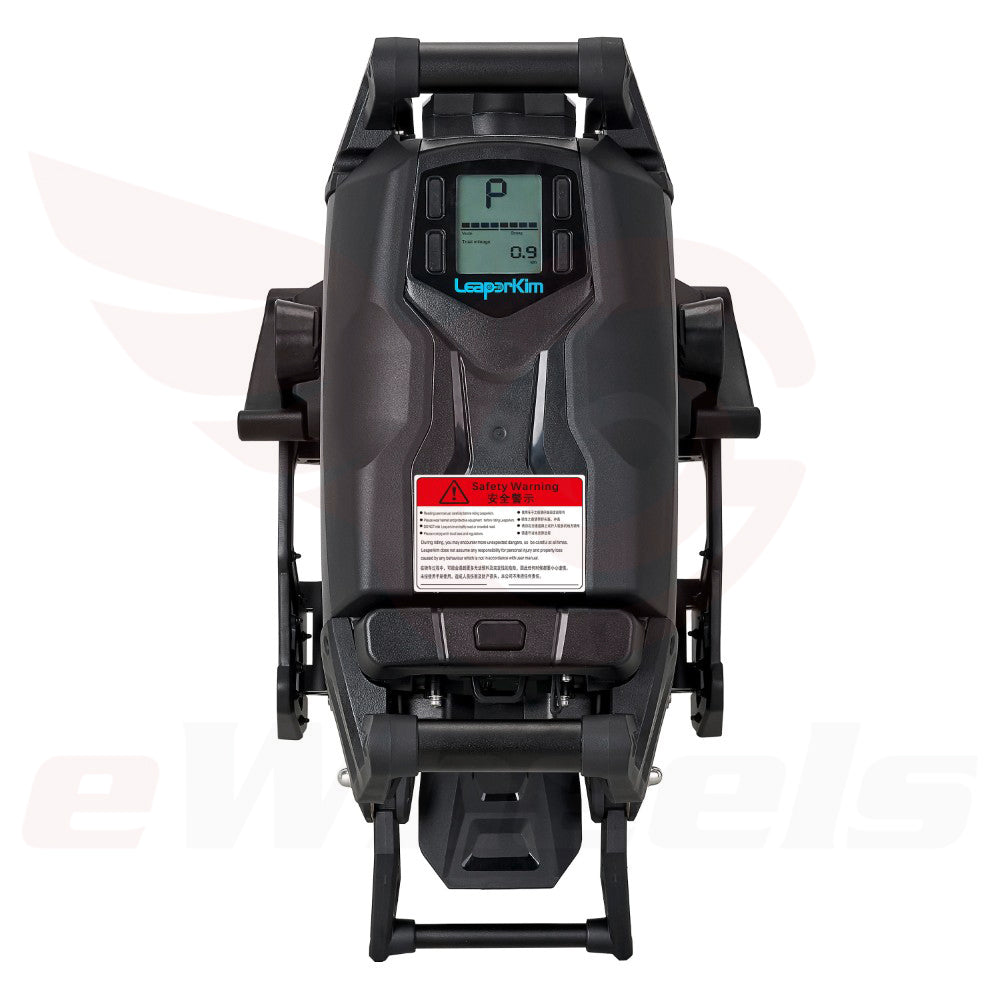

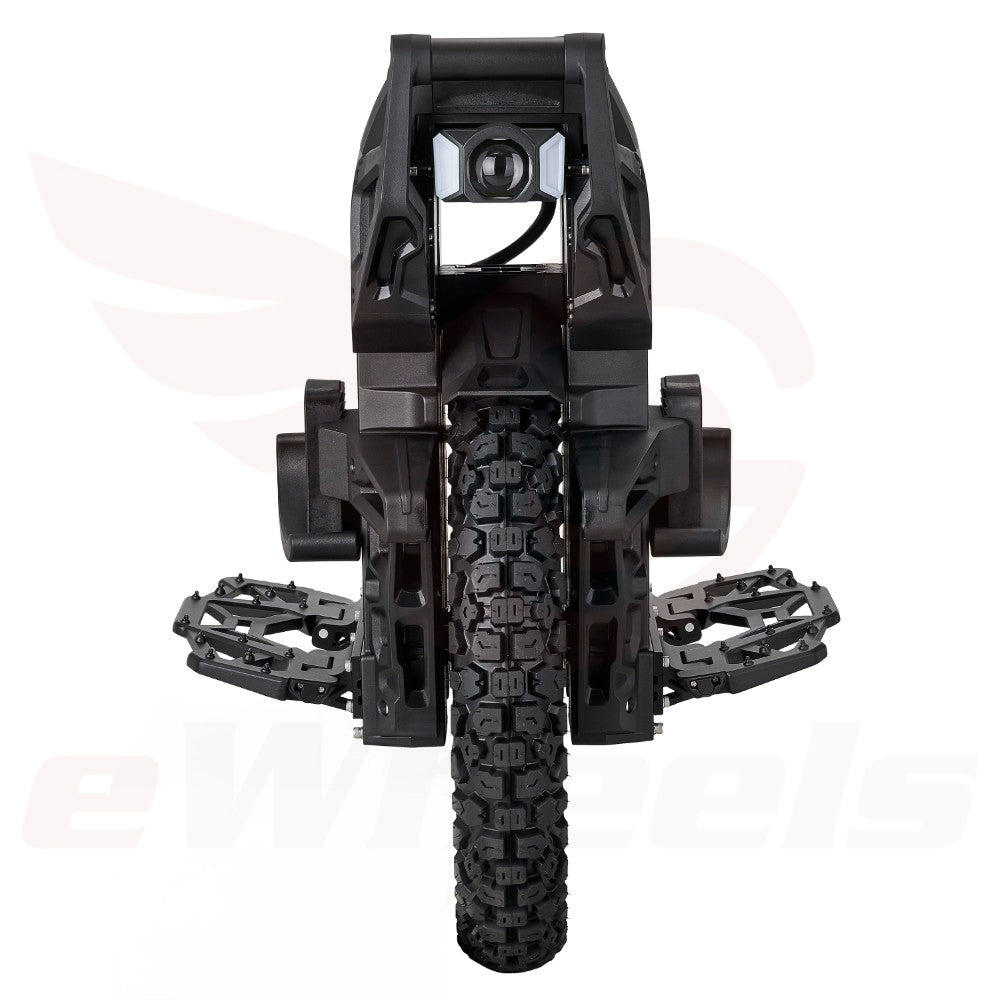

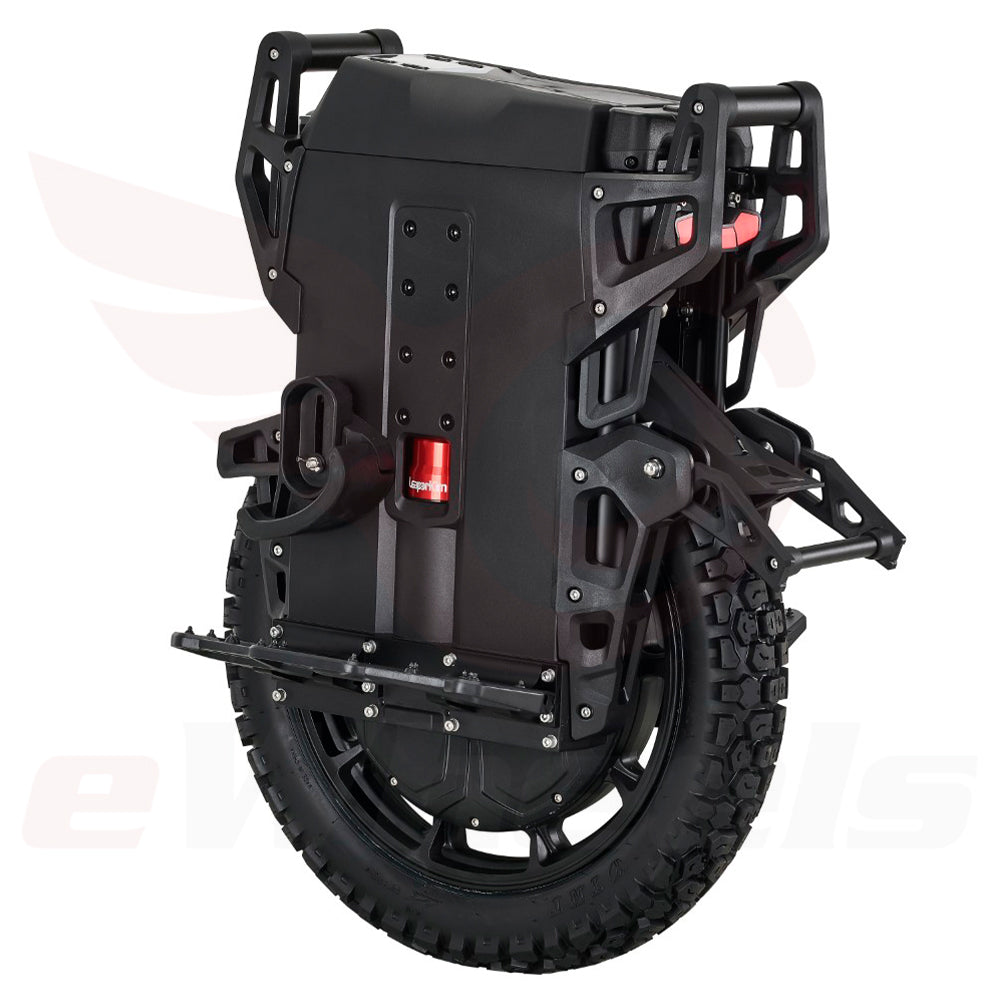

NEW: Leaperkim Lynx-S, 2,700Wh Battery, 3,800W Motor, 20" | 80/90-14 Tire

In Stock
Sale price$3,699.00


  • In Stock, with new progressive suspension coils installed in all versions!
  • Bonus: Seat kit and Beidou Powerpads included with every order
  • What's New: upgraded motor/controller providing 25% more power than the original Lynx, 3,800W nominal/10,000W peak, producing more torque & higher rotational speeds. Improved cylindrical shocks, folding kickstand, adjustable pedals, & upgraded headlight.
  • Suspension: the new shock system incorporates both compression/rebound functions on both sides providing a smooth, more predictable ride, & a lower air chamber for fine-tuning preload adjustments.

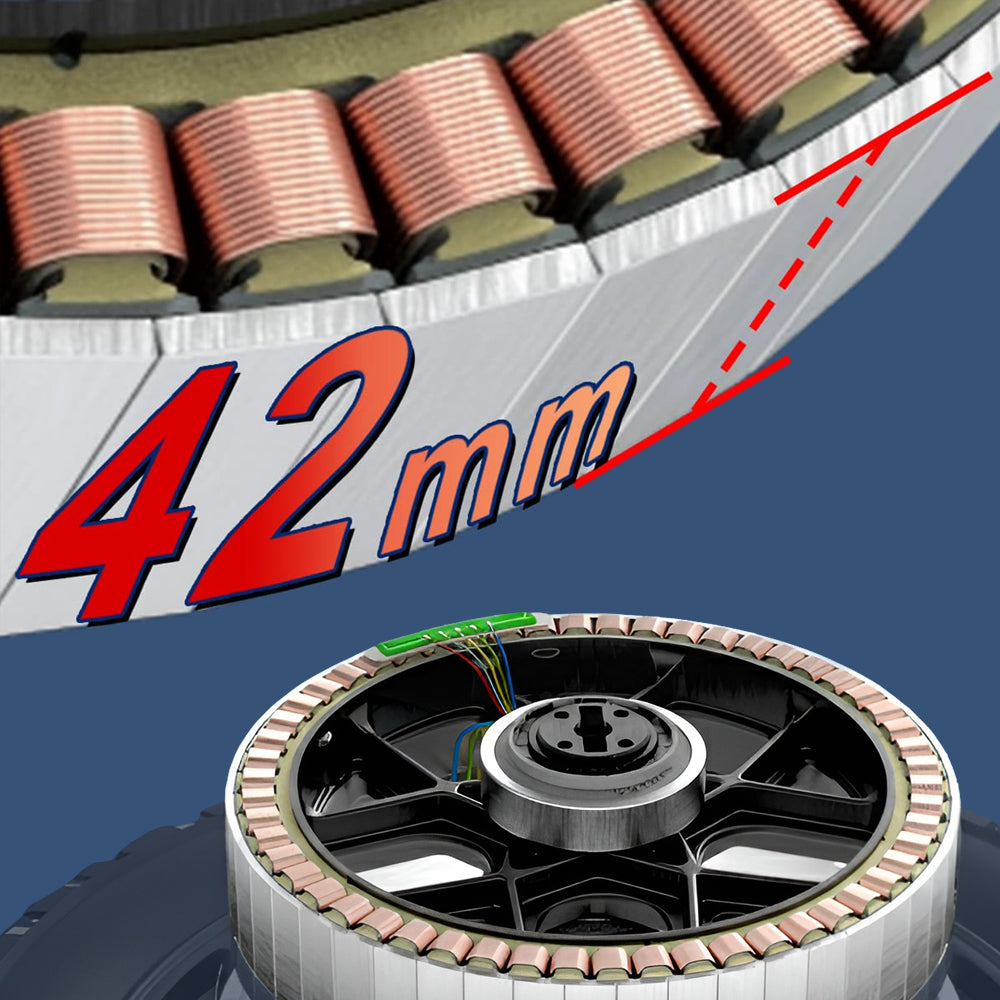

  • Motor: 3,800W motor, ~60 MPH maximum speed (5MPH higher than Lynx) , providing an excellent balance between rotational speed, Wh/mile efficiency, & torque. This is achieved with a wider 42mm stator/permanent magnet width.
  • Battery Pack: the same high-power Samsung 50S 2,700Wh/151.2V battery pack, with SmartBMS, capable of rapid-charging at 20A/3,020W for a sub-hour quick charge.
  • Other: large pedals with three adjustable height placements & replaceable studs; motor temperature sensor function; new App version; light-weight magneisum chassis; revised driver board design for improved stability; improved Oryx headlight.
  • Tire: choice of custom TNT knobby, or TNT street tubeless tires.



Tire: Knobby

Tire

Suspension: 66lb

Suspension

CRUISING SPEED

60+ MPH

WEIGHT

94.7lb

CHARGE TIME

3hr to 80%

MAX LOAD

330lb

BATTERY CAPACITY

2,700Wh

RANGE

60 MILES

High-Power All-Terrain EUC

LYNX-S

Continue the legacy. Redefine the legend.

Leaperkim's most popular all-rounder returns with an updated 3,800 W motor, redesigned smoother suspension, and several quality-of-life upgrades.

60+ mph
Speed
60 mi
Range
3,800 W
Power
3.5 in
Travel
93.7 lb
Weight
01. Overview

Packed with features.

Tap a marker to inspect the features of the Lynx-S.

Lynx-S anatomy view
02. Adjustable Suspension

Absorbing the unpredictable.

A centrally mounted suspension system delivers 90mm of carefully calibrated travel. Choose your own settings, and hit a bump to see how suspension adjustments affect the ride.

66 lb
Coil for riders up to 190 lb
70 lb
Coil for riders 190–220 lb
74 lb
Coil for riders over 220 lb
03. Power

The all-new C42 motor.

One of the biggest upgrades over the original Lynx, engineered for more torque, higher top speeds, and an added layer of safety.

3,800 W
Nominal power, up from 3,200 W
Widest magnets
Of any wheel released so far
Temp sensor
Real-time thermal safety
Hall-less mode
Keeps balancing on sensor failure
04. Battery

Safe power delivery.

Up to 60 miles of range, guarded by a smart BMS watching all 36 cell groups. Tap a protection node to trip its condition and watch the pack respond.

Pack
147.6 V
Spread
12 mV
Current
0 A
Temp
78 °F
● 36S PACK, NOMINAL
4.2VCELL GROUPS · 1–362.8V
Short Circuit
Instant cut on a dead short.
🔌
Over Current
Caps draw under hard load.
🔋
Over Charge
Stops at full to protect cells.
🪫
Over Discharge
Prevents deep-drain damage.
🌡
Temperature
Per-cell thermal watch.
📉
Voltage
Balances every cell group.
● ALL SYSTEMS NOMINAL
05. Lighting

See, and be seen.

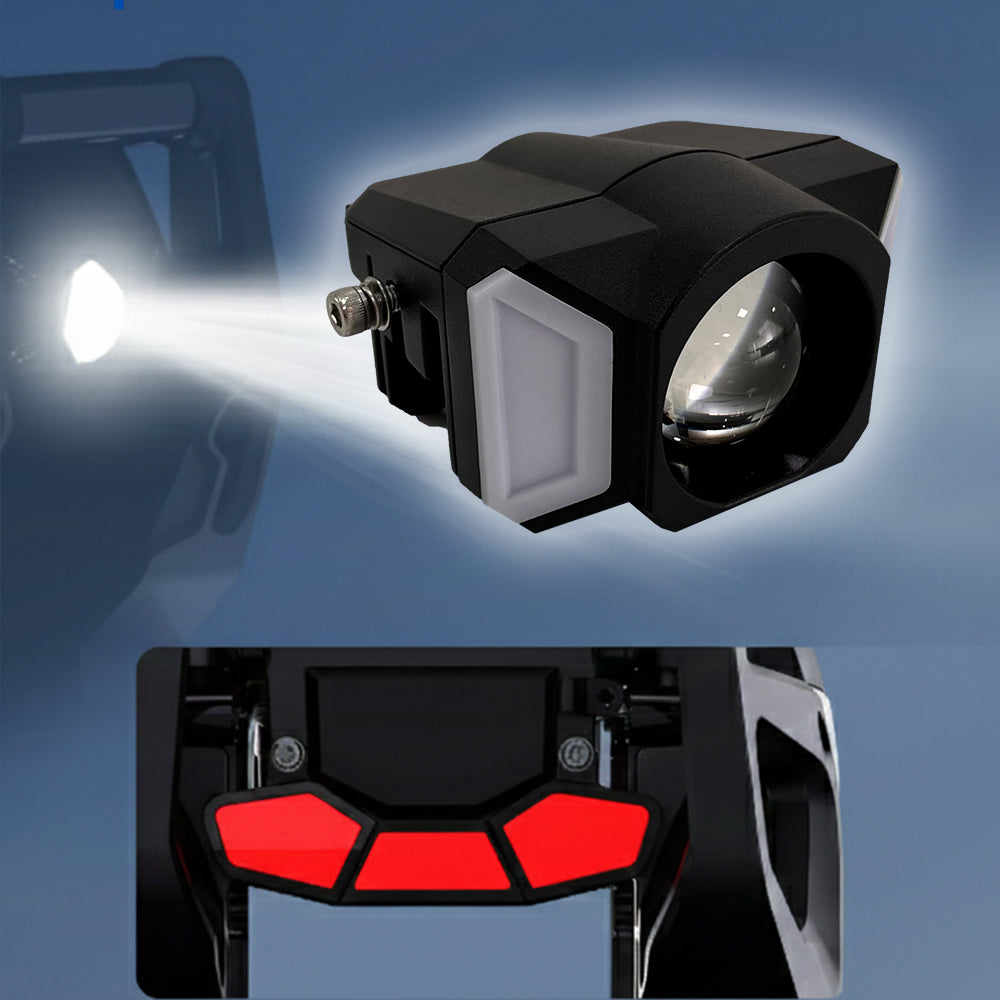

Leaperkim's latest headlight design, carried over from the Oryx, with a brighter output and an improved beam pattern for high-speed night riding.

3,000 lm
Headlight output, up from 2,500 lm
25 W
Headlight power, up from 20 W
New lens
Improved beam pattern, from the Oryx
Turn signals
Revised taillight, brighter rear
06. Pedals

Set your stance.

Two pedal bracket positions, like the Oryx, let you trade ground clearance for stability. Toggle between them to see the difference.

Lynx-S pedals in low position Lynx-S pedals in high position
2 positions
Clearance for trails, or lower for speed
Larger pedals
Oryx design, more support on long rides
Stud grip
Spiked pedals provide maximum grip
No mods needed
Lowering brackets built in
07. Kickstand

Built to take a fall.

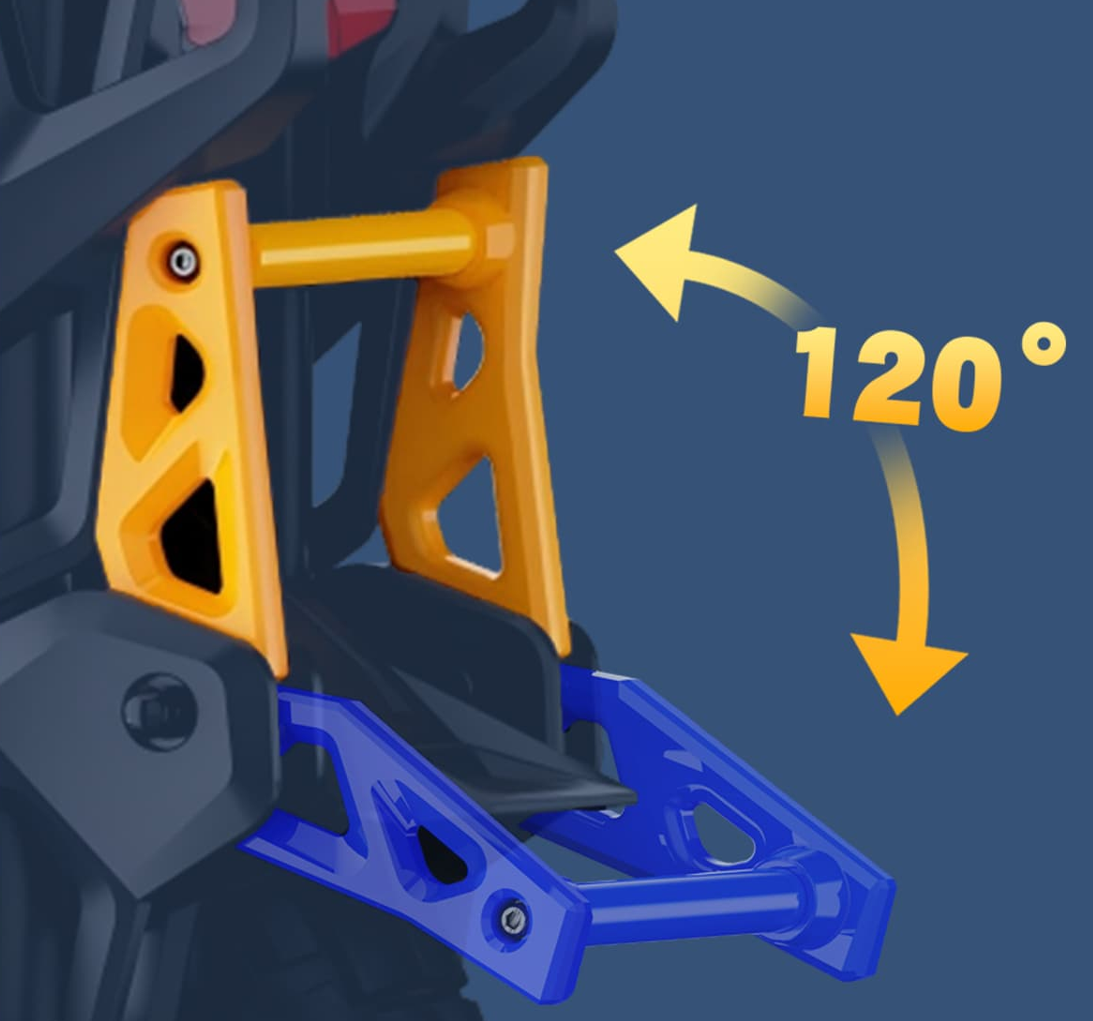

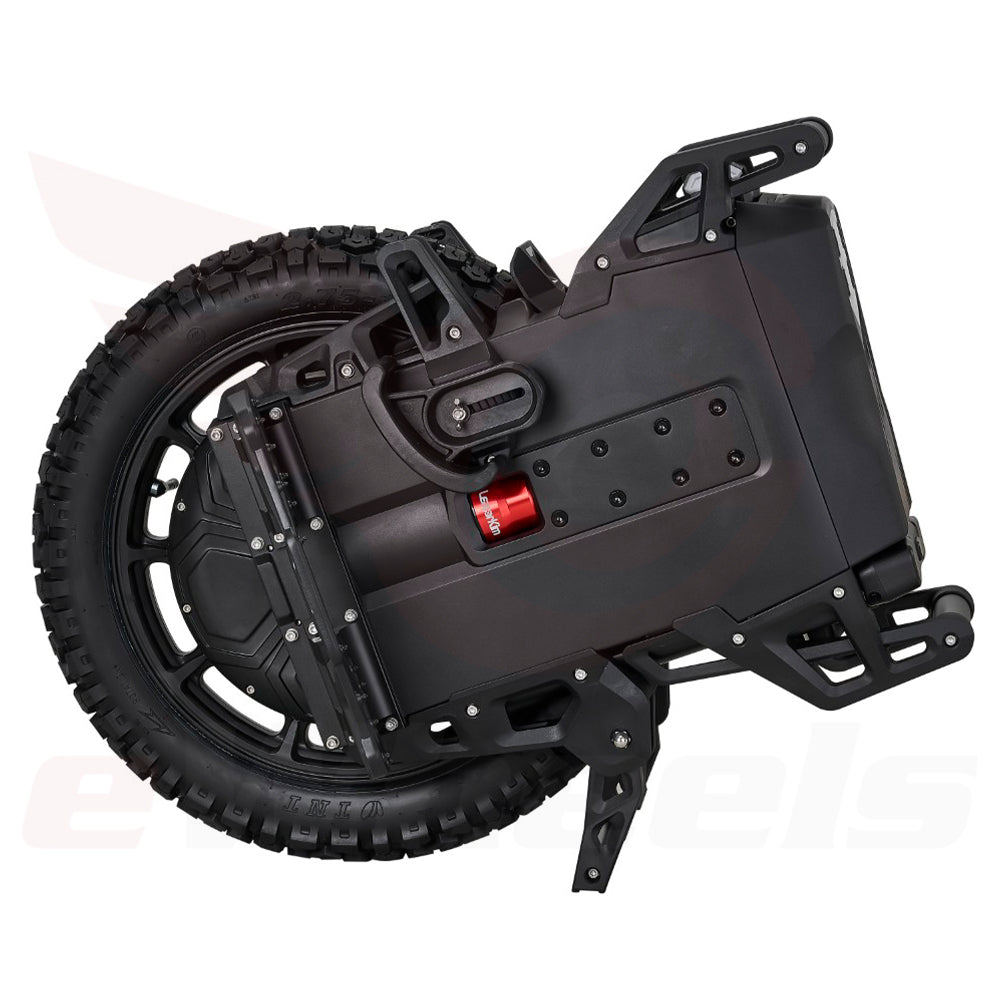

First seen on the NOSFET Apex and later the Oryx, the Lynx-S adopts a folding kickstand designed to survive crashes and tuck away for storage.

Folding design
From the NOSFET Apex and Oryx
Crash resistant
Folds away to avoid damage in a fall
Smaller footprint
Tucks in for easier storage
Cheaper repair
Brackets stay intact if arms break
08. Lynx-S vs Lynx

What the S adds.

Same proven platform. Batteries, controller, suspension, and tires carry over. The updated motor boosts power and top speed, in exchange for some added weight.

Lynx-S
Lynx
Rated motor
3,800
W nominal
3,200
W nominal
Max speed
60+
mph
50+
mph
Net weight
93.7
lb
88.2
lb
Battery
2,700
Wh · 50S
2,700
Wh · 50S
Controller
840 A
36 MOSFET
840 A
36 MOSFET
Suspension
90
mm hydraulic
90
mm hydraulic
Tires
80/90-14
tubeless
80/90-14
tubeless
09. Specs

Lynx-S Specifications

Rated Power
3,800 W
Max Speed
60+ mph
Battery
2,700 Wh · Samsung 50S
Voltage
151.2 V nominal
Controller

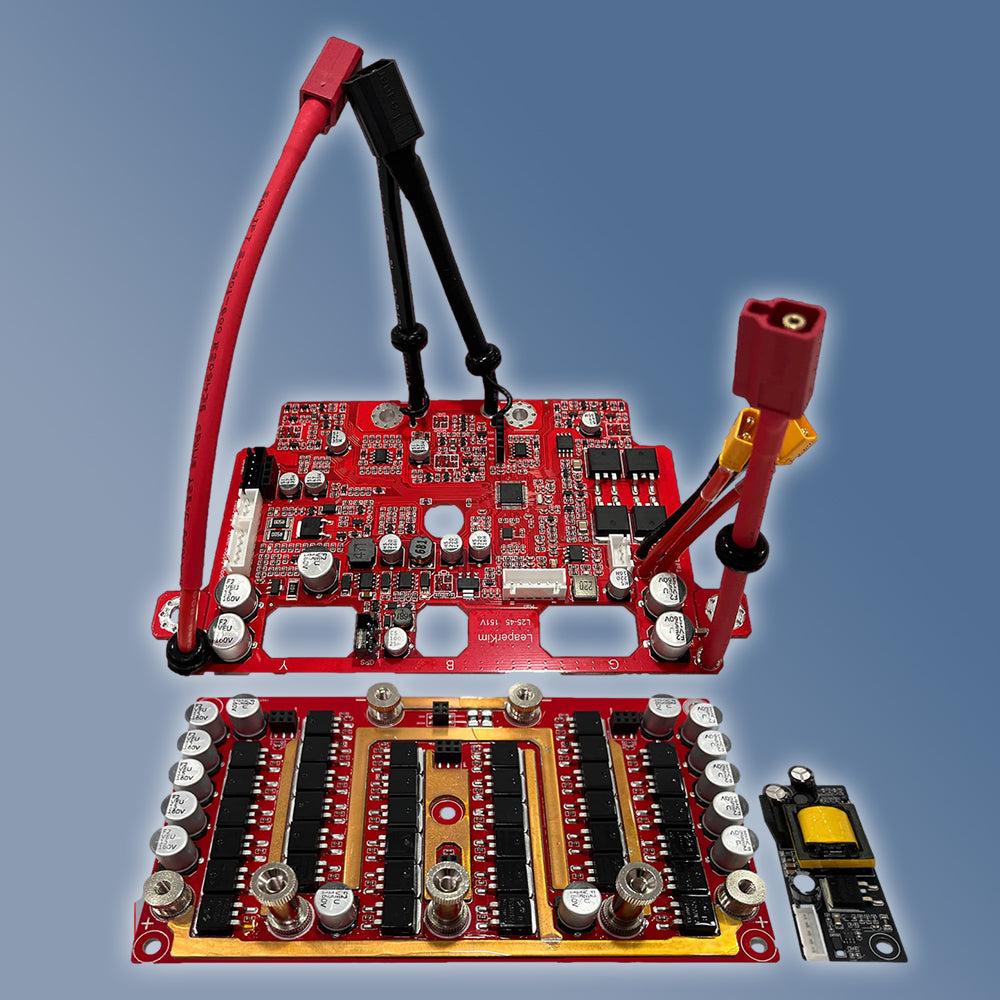

36× MOSFET · 840 A peak · 2nd-gen 151 V
Suspension
90 mm FastAce hydraulic
Damping
Adjustable compression + rebound + pressure
Tire
80/90-14 · tubeless
Frame
Mg-alloy + nylon cage frame
Pedals
Mg-alloy · anti-slip · height-adj.
Net Weight
93.7 lb · 42.5 kg
Max Load
330 lb · 150 kg
Charger
151.2 V / 5 A · up to 20 A
Charge Time
4 h @5A · 2 h @10A

Frequently Asked Questions

What are the key upgrades of the Lynx-S compared to the Lynx? Is it worth upgrading for Lynx owners?The main improvement on the Lynx-S is the new motor, optimized for more torque and higher speeds, which provides a noticeable performance improvement. Depending on your needs, it may be worth it to upgrade. Other small improvements include a better headlight, folding kickstand, thicker bus bars on the driver board for better efficiency and power delivery, and a new suspension design, the batteries are the shared with the original Lynx. Frame rigidity has also been improved compared to the original Lynx, through better suspension tolerances, and many small updates on every component adding up to an overall improvement.

Who is the Lynx-S made for?The original Lynx is one of if not the most popular "jack of all trades" Wheels, capable of excellent performance both on and off-road. The Lynx-S offers a similar feature set, but with a boost in power and some quality of life upgrades. If you're looking for a one-and-done, reliable, top-end wheel that can handle most riding scenarios at under 100lbs, then the Lynx-S is an excellent option.

What sets the Lynx-S apart from the competition? While other Wheels may excel in certain areas, for example the Blitz with its excellent power to weight ratio, and the X-Way with its excellent torque, or the F18 with its impressive tech features, the Lynx-S has the best reliability and build/suspension quality, while also packing enough performance to keep up with similar offerings. This complete package with an emphasis on quality is what Leaperkim is known for, and it's why their products remain some of the best-selling Wheels on the market.

What's the top speed? Early tests indicate the Lynx-S can reach 60mph on a full charge, thanks to its new motor and firmware improvements. As with all Wheels, though, top speed can vary based on a number of factors, including conditions, rider weight, state of charge, tire pressure, and more.

How water-resistant is the Lynx-S? Leaperkim doesn't explicitly provide a water resistance rating for the Lynx-S, which means that the general rule for all Wheels should be followed: light rain and small puddles are ok, but moderate to heavy rain and larger bodies of water are to be avoided wherever possible.

Which Powerpads will be included with the Lynx-S? Beidou is developing new pads for the Lynx-S, that are intended to work in conjunction with the built-in factory toe hooks. We'll be including a set of these new pads with every Lynx-S.

What charger is included with the Lynx-S? Is it rapid-charging capable? Are there any aftermarket charger options? The Lynx-S shares its controller & batteries with the original Lynx, but Leaperkim is claiming a maximum rate of charge of 20A this time around, compared to the previous 15A. A 5A charger will be included in the box, but we do have the latest high-voltage Roger charger available, capable of delivering around 10A on a 120V source and around 13A on a 220V source. We also have an extra-reliable adjustable 5A charger, with selectable amperage and charge percentage for maintaining battery health,

How does the adjustable pedal height work? There are several screws holding the pedal brackets to the sides of the Wheel, these can be unscrewed, and the brackets can be mounted in one of two positions. There are indentations on the side casings, to help with alignment, and reduce shear stress on the bolts when the brackets are installed.

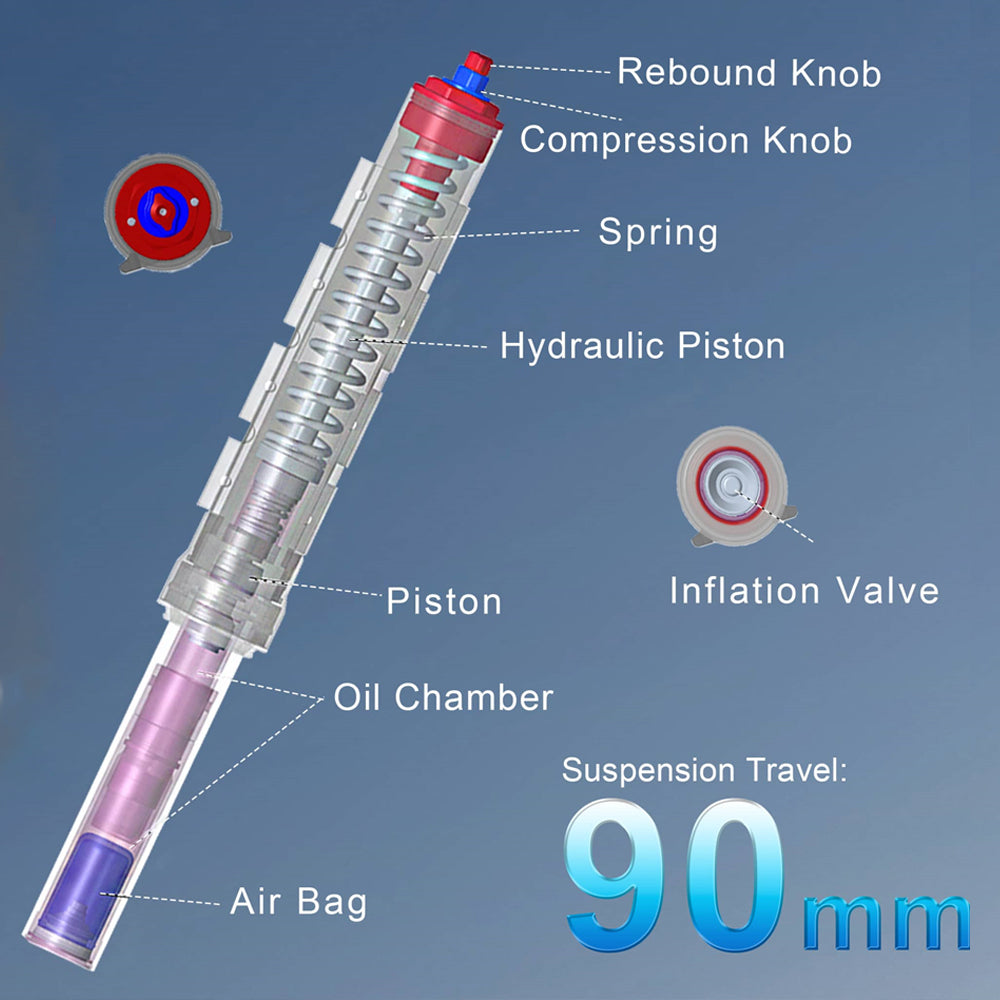

How does the new suspension system work? Unlike the Lynx, both shocks on the Lynx-S are identical, as they each have a compression and damping rebound adjustments, and their own air chambers. Both shocks needs to be adjusted identically, though, so the same adjustments need to be made to both shocks at the same time. If you suspect they've gotten out of sync, you can simply adjust both shocks to the maximum clockwise or counterclockwise setting, and adjust them equally from there. The new shocks also lack a spring-tension preload adjustment mechanism, however the air chamber pressure is intended to replace the preload adjustment in order to set your suspension sag.

Can the new motor and suspension be installed on the Lynx? The new suspension is a drop-in replacement, and we do plan to order some sets for riders looking to upgrade. While the motor is physically compatible, the controller firmware will not be optimized for it, so some performance will be left on the table. The new controller is also larger compared to the original Lynx controller, so you'd have to replace the controller, and the controller tray, which then requires replacing more parts, and so on until the upgrade process becomes quite costly and complex. Ultimately, we don't recommend swapping the motor alone as it's not an officially supported configuration, but riders willing to accept the potential safety risk can choose to swap the motor if they wish.
